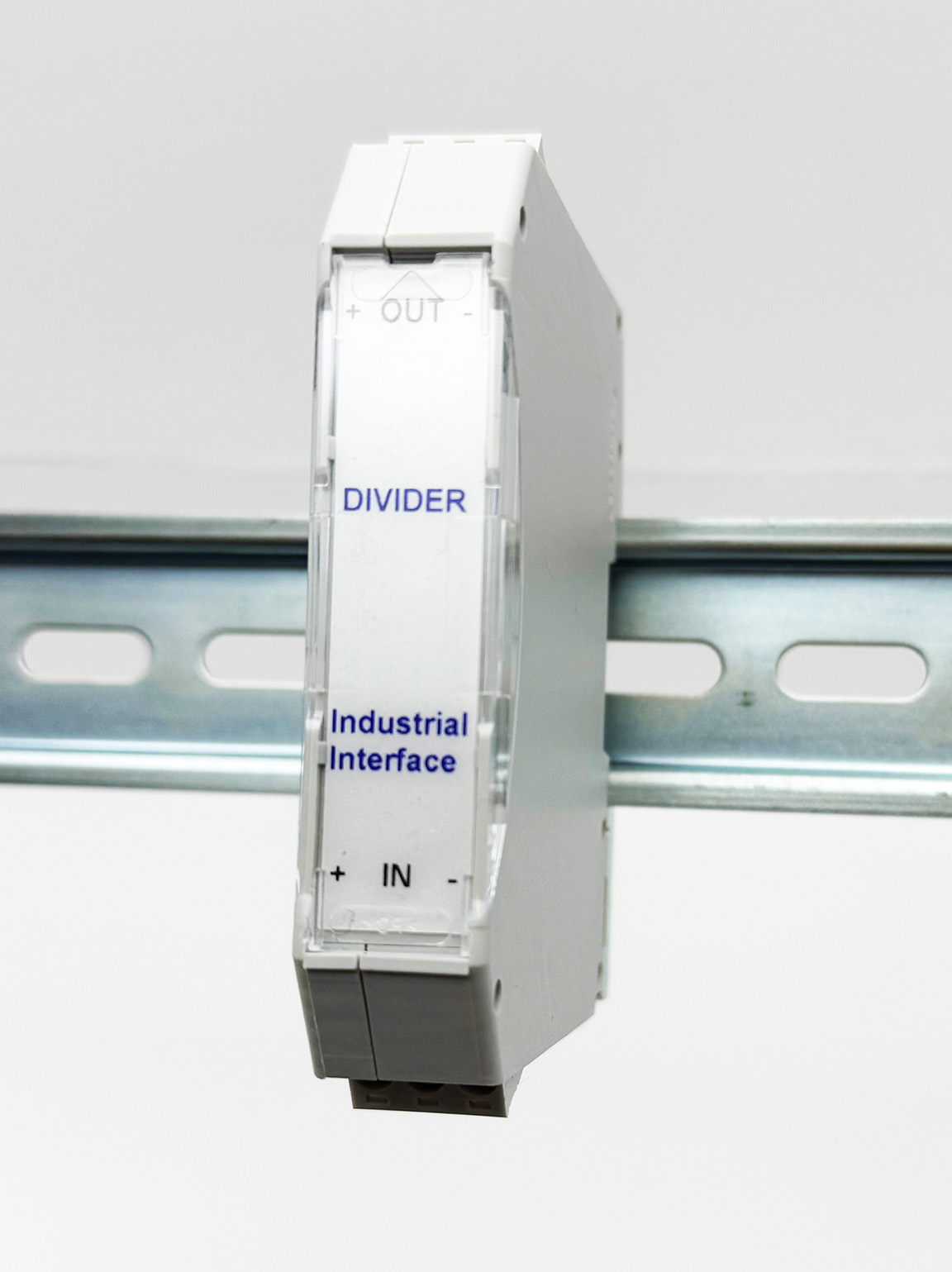

DIVIDER AC/DC Voltage Divider unit

Divider AC/DC Voltage Divider Unit

• Reduces Voltages to Safe Levels
• Used to Comply with Low Voltage Directive
• Protects Output from High Input Voltages

The II-DIVIDER module is used to reduce voltage levels to safe levels before they are inputted into our range of Signal Conditioning a modules. Both AC and DC voltages can be reduced using this unit and almost any ratio can be achieved but typical ratios are 1:10 and 1:5.

A typical application would be to monitor a 0-300Vac signal by first dividing this down to 0-30Vac using the II-DIVIDER before a II-VCON-AC unit is used to convert this signal to an isolated 4-20mA output.
