IWLoadT Strain Gauge and Load Cell input wireless transmitter

IWT-LoadT Wireless Transmitter

• Wireless Load Cell or Strain Gauge Transmitter
• Accepts inputs from any 4-wire bridge type input
• Licence free ISM Band 2.4GHz
• Up to 500m Transmission distance
• 5 Year Battery life at 10s update rate
• Works with all IWR Receivers & IoT Gateway

The IWLoadT accepts an input from a Strain Gauge or Load Cell and transmits the value wirelessly to a suitable receiver such as the IWR-PORT.

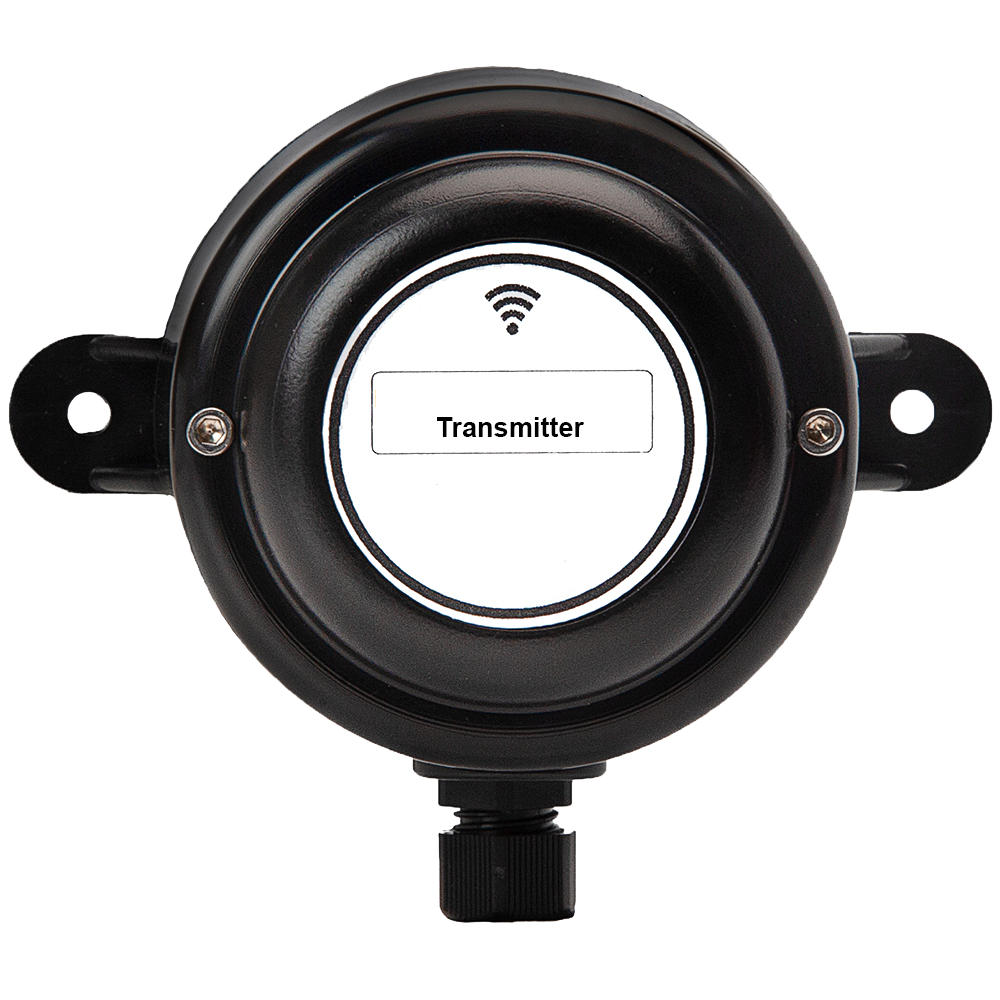

The IWLoadT is mounted in an acetal plastic IP67 enclosure and is powered by a 3.6V lithium battery. Typical battery life at a 10s update rate would be more than 3 years. Channel number and update rate can be selected using internal DIP switches and you can choose between either an on board ceramic chip antenna or SMA connector for an external antenna.

Typical transmission ranges are 500m outdoor, 50m indoor.

Typical Applications Include:

• Cable Replacement system
• Dispense with expensive and tortuous cable runs
• Monitoring of Load Pins in difficult to reach areas
• Converts any Load cell or Strain Gauge to a wireless unit
