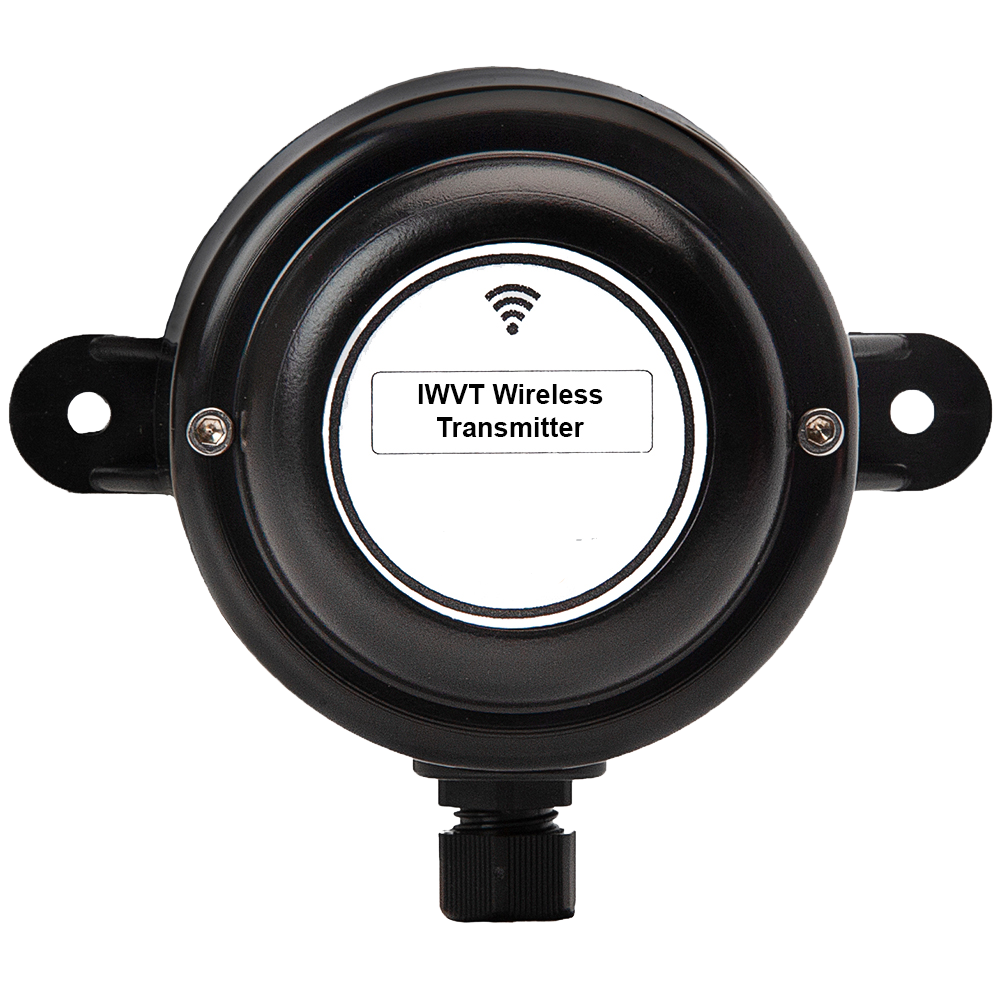

IWVT voltage input wireless transmitter

The IWVT Wireless Transmitter is a cost effective alternative to

traditional wiring that offers the advantages of a low-cost installation in

inaccessible and expensive installation environments.

It is easily paired to any of the range of IWR receivers - thus offering a

“plug and play” solution to your analog voltage application.

The IWVT sensor should be used with any of the IWR range of receivers.

A line-of-sight range of up to 500 m is possible depending on the

wireless receiver used (refer to specific receiver datasheets for further

information).

Features:

• 0-10Vdc wireless transmission

• Up to 500 m line-of-site range (depending on receiver)

• Five-year battery life at 10 second transmission update rate

• Simple DIL switch pairing with the single or five channel receiver

• User-selectable transmission update rates

• A range of receivers are available

• Receiver clean contacts provide process alarm functions

Typical Applications

• Simple cable replacement installation

– dispense with expensive and tortuous cable runs

• Analog Sensor Status

– transmit 0-10Vdc sensor outputs to a remote receiver
